[NEW] JDM HONDA FIT e:HEV GR3 2023 Wiring Harness (3) GENUINE OEM

Fitting Model :

HONDA FIT e:HEV GR3

Model Year :

2023

Grade :

RS

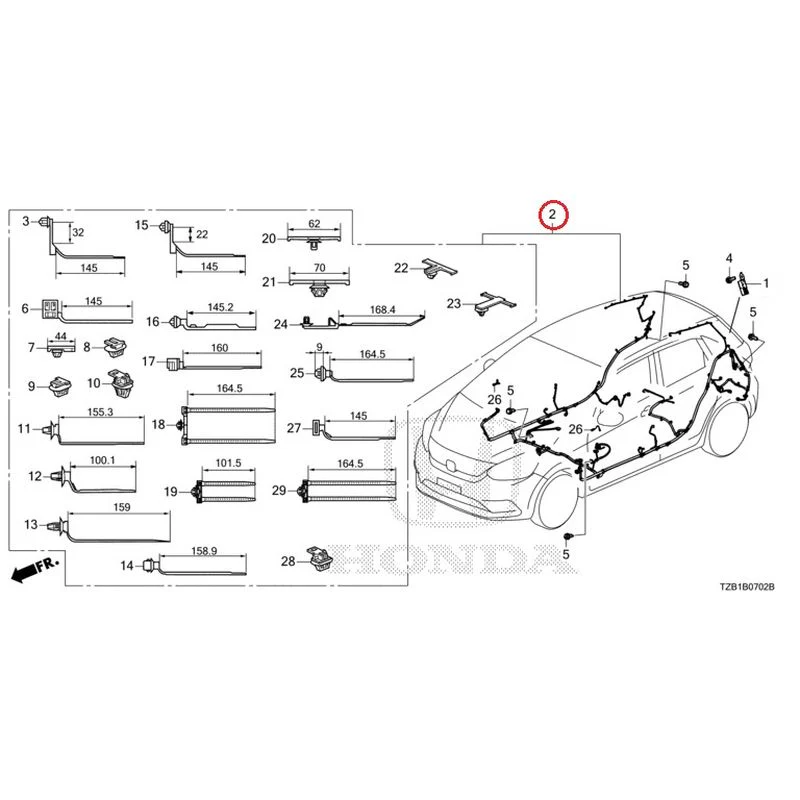

Parts Information :

Wiring Harness (3)

No
Parts Number
Parts Name
Required
QTY
2
 32107-TZB-JR0 harness, floor wire
1
2
 32107-TZB-JS0 harness, floor wire
1
3
 32133-SLA-003 Band, harness offset (30) (dark gray) (145MM)
1
5
 90148-SE0-003 Ground Bolt 6X16 (Washer 12.5MM) (ZN)
4
6
 91531-SFA-003 Clip, harness band 6MM (natural) (145MM)
6
7
 91531-T4N-003 Clip, Wire Harness (Black) (44MM)
2
8
 91533-STK-003 Coupler Clip (Natural)
2
9
 91534-SWA-003 Coupler Clip (Dark Gray)
1
10
 91535-TA0-003 Clip, coupler (dark brown)
1
11
 91540-STK-003 Clip, harness band (black) (155.3MM)
4
12
 91540-TA0-003 Harness Band Clip (Natural) (100.1MM)
N
13
 91540-TAA-003 Clip, Harness Band (Black) (159MM)
N
14
 91542-SWY-003 Clip, harness band (black) (158.9MM)
3
15
 91542-TF0-003 Band, harness offset (20) (dark blue) (145MM)
3
16
 91544-T0A-003 CLIP, HARNESS BAND (NATURAL) (145.2MM) (SEAL)
2
17
 91547-SH3-003 Clip, band (natural) (160MM)
5
18
 91547-T2A-003 Clip, band harness (40) (Black) (164.5MM)
2
19
 91548-T2A-003 Clip, band harness (18) (Black) (101.5MM)
2
20
 91550-T0A-003 Clip, wire harness (62MM) (Black)
4
21
 91550-TA0-003 Clip, wire harness (natural) (70MM)
9
22
 91552-TR0-003 Clip, offset (20) (natural)
4
23
 91553-SFE-003 Clip, wire harness (30) (black)
1
24
 91559-TV0-003 Band harness clip
1
25
 91545-SNA-003 Clip, Harness Band (Dark Blue) (164.5MM) (Seal Tsuki)
1
27
 91531-SDA-003 Clip, harness band (Natural) (145MM)
1
29
 91548-TY2-003 Clip, band harness (40) (Black) (164.5MM)
1

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.

NHP003288
