[NEW] JDM HONDA FIT e:HEV GR3 2023 Wiring Harness (2) GENUINE OEM

Product image 1
1 / 29
+24

[NEW] JDM HONDA FIT e:HEV GR3 2023 Wiring Harness (2) GENUINE OEM

Fitting Model :

HONDA FIT e:HEV GR3

Model Year :

2023

Grade :

RS

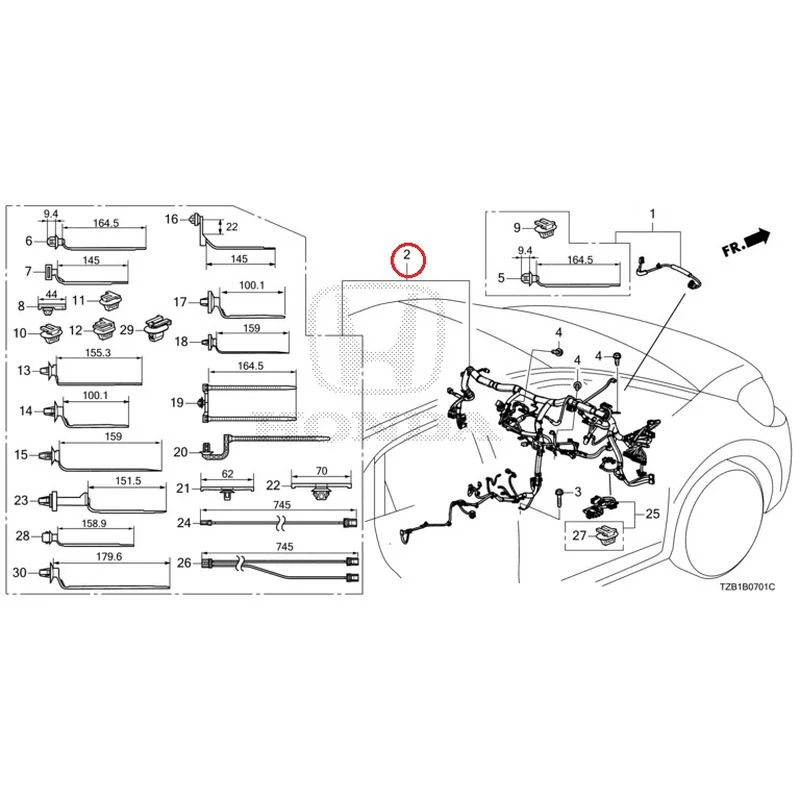

Parts Information :

Wiring Harness (2)

No
Parts Number
Parts Name
Required
QTY
1
 32116-TZA-JA0 subcode, sunbeam sensor
1
2
 32117-TZB-JM0 harness, instrument wire
1
2
 32117-TZB-JN0 harness, instrument wire
1
3
 90137-TVA-A01 BOLT, GROUND 6X20
1
4
 90148-SE0-003 Ground Bolt 6X16 (Washer 12.5MM) (ZN)
3
5
 91507-SNA-003 Clip, Harness Band (Brown) (164.5MM)
1
6
 91507-SNA-003 Clip, Harness Band (Brown) (164.5MM)
2
7
 91531-SDA-003 Clip, harness band (Natural) (145MM)
1
8
 91531-T4N-003 Clip, Wire Harness (Black) (44MM)
3
9
 91533-STK-003 Coupler Clip (Natural)
1
10
 91533-STK-003 Coupler Clip (Natural)
3
11
 91534-SWA-003 Coupler Clip (Dark Gray)
2
13
 91540-STK-003 Clip, harness band (black) (155.3MM)
N
14
 91540-TA0-003 Harness Band Clip (Natural) (100.1MM)
4
15
 91540-TAA-003 Clip, Harness Band (Black) (159MM)
1
16
 91542-TF0-003 Band, harness offset (20) (dark blue) (145MM)
1
17
 91545-TA0-003 Clip, harness band (Natural) (100.1MM) (Shirutsuki)
1
18
 91545-TAA-003 Clip, harness band (black) (159MM) (seal)
2
19
 91547-T2A-003 Clip, band harness (40) (Black) (164.5MM)
5
20
 91549-TLA-003 CLIP, OFFSET BAND (L-25) (BLACK)
1
21
 91550-T0A-003 Clip, wire harness (62MM) (Black)
1
22
 91550-TA0-003 Clip, wire harness (natural) (70MM)
1
23
 91558-SAA-003 Clip, harness band (30) (Black) (151.5MM)
2
24
 39114-TZA-J01 Cord ASSY., USB (Connector: Gray/Black)
1
26
 39114-TZA-E01 Code ASSY., USB (DA)
1
28
 91542-SWY-003 Clip, harness band (black) (158.9MM)
1
29
 91536-3A0-003 Clip, relay holder (dark gray)
1
30
 91540-3A0-003 Clip, Harness Band (Dark Gray) (175.2MM)
6

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.

NHP003287
